Adapta ATA-100
This hard phone is another ATA (analog telephone adaptor). It enables you to
connect your POTS (plain old telephone system) phones to the Internet. Think of
it as a phone jack for VoIP. It has one ethernet port and one RJ11 phone jacks.
Out of the box, it is configured for DHCP. This means that it gets its IP
address from your DHCP server automatically.
NOTE: We have seen instances where installing the Adapta behind a firewall
which blocks ICMP packets causes problems with registration. Try turning off any
ICMP blocking on your firewall.
|
STEP 1
You must first determine what IP address it received. To do this, you
need to pick up the phone attached to the Line 1 jack and
dial: **00 (2 asterisks and 2 zeroes)
then dial: 20#
and you will be told the IP address of your device (e.g. 192.168.0.100)
|
|
STEP 2
Go to any browser equipped computer on your network and enter the address:
http://<IP ADDRESS>/
(where <IP ADDRESS> is replaced by the address that was given to you in STEP
1. |
|
STEP 3
Click on the "Admin Login" button near the top right side of the screen.
|
 |
|
STEP 4

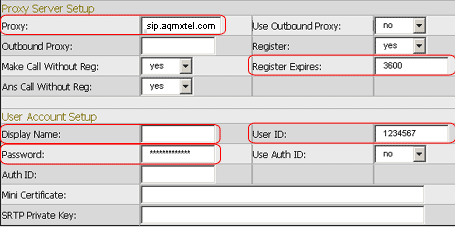

You need to modify only a few parameters from the factory default. They
are listed here:
|
| SIP Server:
|
sip.aqmxtel.com |
| Display Name:
|
Enter your full name, this will show up as part of your
callerid. |
| User ID:
|
Enter the phone number you chose when you
signed up for aqmxtel service. |
| Password:
|
Enter the password that you chose when you signed up for
aqmxtel service. |
| Register Expires:
|
3600 |
 |
|
Optional - Dial Plan (You can set this
to dial as yo do it in Mexico) |
|
(*xx|[1-9]xx.|<001:1>xxxxxxxxxx|<00:011>xxxxxxxxx.|<01:01152>xxxxxxxxx.|xxxxxxx.<
:@gw0>) |
|
STEP 5
Click on the "Submit Changes" button at the bottom of the form. |
 |
|
